PDC

• Manual back gauge 750 mm, adjustable from the front, with digital readout
• Hold-down device with hard rubber rail to protect polished sheets
• Manual blade gap adjustment, two sides
• Extended angle gauge, right, with T-slot and scale 1,000 mm
• All-steel blade, double-edged
• 2 sheet supports with T-slot and scale 1,000 mm
  (3 support arms with a working length of 4000 mm)
• Table with exchangeable stainless steel plates with recessed grips
• Selector switch for single and continuous stroke
• From 2000 mm: with bilateral drive
• Footswitch
• Anchor plates incl. dowels
• Obligatory safety package in accordance with CE:
  Rear guarding with 3-beam light barrier incl. side protection grid
• Working height: 920 mm

Options

• Blades designed for stainless steel, instead of standard blades
• Manual back gauge 1000 mm, adjustable from the front with digital readout

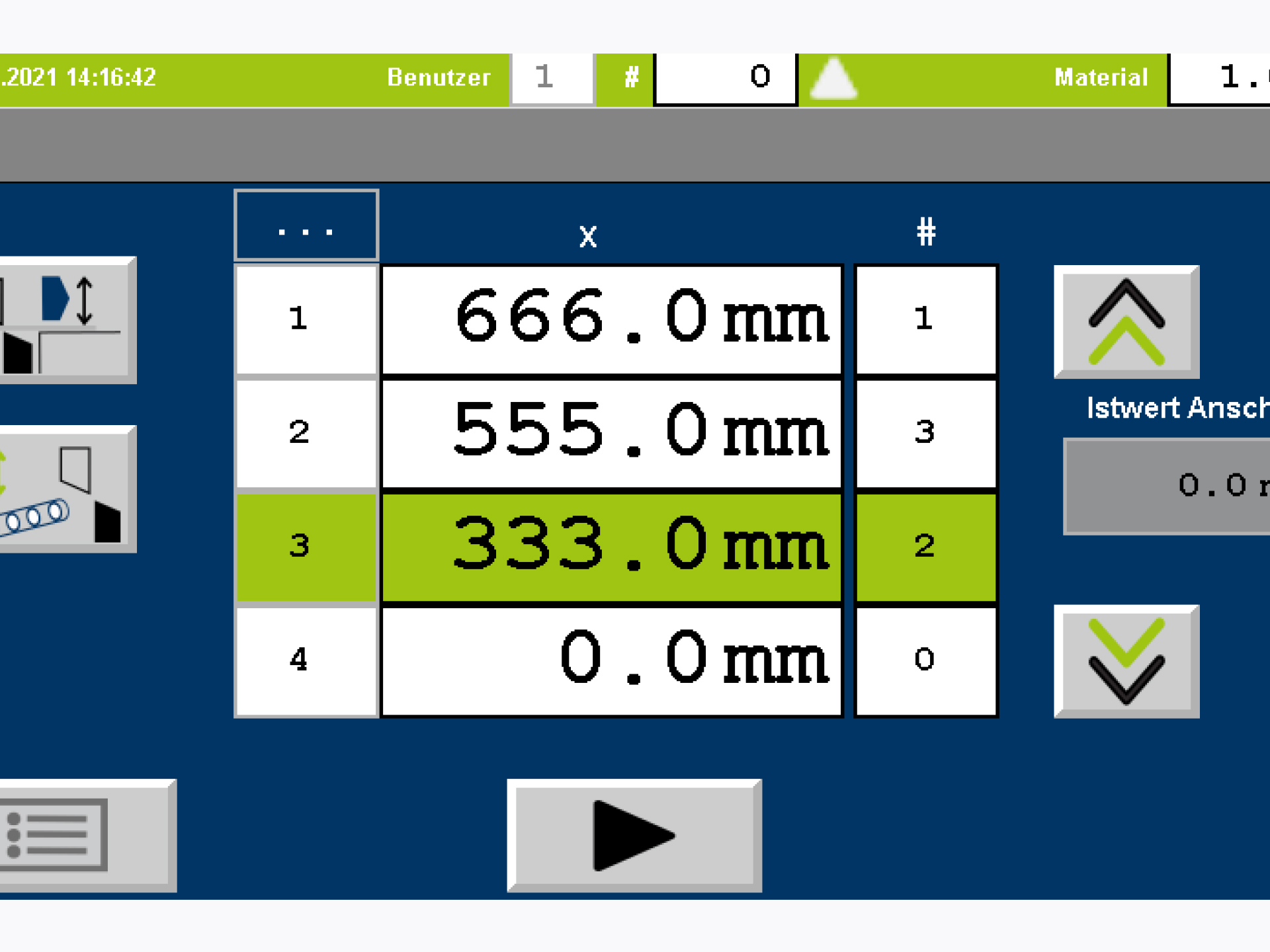

• NC positioning control Classic Cut, touch display, motorized back gauge 750 mm or 1000 mm
• Longlife bearing system
• Back gauge with ball screw spindles
• Sheet support, pneumatically controlled material to the back:
  – Unloading to the rear
  – Sheet support distance to the lower blade optionally adjustable „quick adjustment“ between 10 – 40 – 70mm
  – Mechanical „swing-away function“ (Distance between stop angle and lowered seesaw)
  – Adjustable swing angle (from 25° up to 10°)
  – incl. sheet shute to the front (without cart)
• Sheet support, pneumatically controlled, material to the front, incl. sheet shute Version 1
• Combi-Sheet support (only in combination with ClassicCut) Version 2:
  Pneumatically controlled sheet support with the following functions:
  – Unloading to the front incl. sheet shute
  – Rear cross cut function incl. safety package
• Combi-Sheet support (only in combination wiith ClassicCut) Version 3:
  Pneumatically controlled sheet support with the following functions:
  – Unloading to the front incl. sheet shute
  – Unloading to the rear with stacking function
  – Seesaw with plastic rolls
  (Without stacking cart)
• Sheet support to the front, with gauge extension up to 1000 mm
• Closed table, support plate and support arms with ball rollers
• Sheet support arm for closed table with ball rollers, T-slot and scale
• Extended angle gauge (right or left) with T-slot and scale
• Tipping gauge for insertion in T-slot
• Extended angle gauge (right or left) with scale incl. lateral flip gauge on linear guide
• Extended angle gauge (right or left) with electronic lenght measurement system, fine adjustment and lateral flip gauge on linear guide
• Adjustable angle gauge with scale division 0 – 180°
• Linear guide at the front for movable table support arms (without support arms)
• Movable support arm for linear guide, at the front, incl. T-slot and scale
• Motorized blade gap adjustment (only in combination with positioning gauge Classic Cut)
• LED cutting edge illumination
• Pneumatic hold-down device
• Stroke counter
• Extended sheet shute to the front
• Sliding cart usable for deposition to the front, on 4 steering castors, 2 lockable (for cuttings up to max. 500 mm up to max. 200 kg)
• Sliding cart (without stacking sheet insets), usable only in combination with sheet support for deposition to the front or rear, with 4 steering castors, 2 lockable
  (for cuttings up to max. 750 mm, up to max. 400 kg)
• Set of stacking sheets for sliding cart maximum stacking height 30 mm
• Ergonomic stacking cart frame-guided on steering castors for combi sheet support version 3 and sheet support to the rear (requirement: seesaw with castors)
  for stacking to the rear at a height of 675 mm, max. load 400 kg, stacking height ca. 100 mm
• Seesaw with plastic rolls (For sheet support version 1 or 2 and sheet support to the rear)
