BAM

Overview

The folding machine BAM 1000 and BAM 2000 are small and light, but offer very high functionality and mobility.

Brochures:
deutsch
english

Details

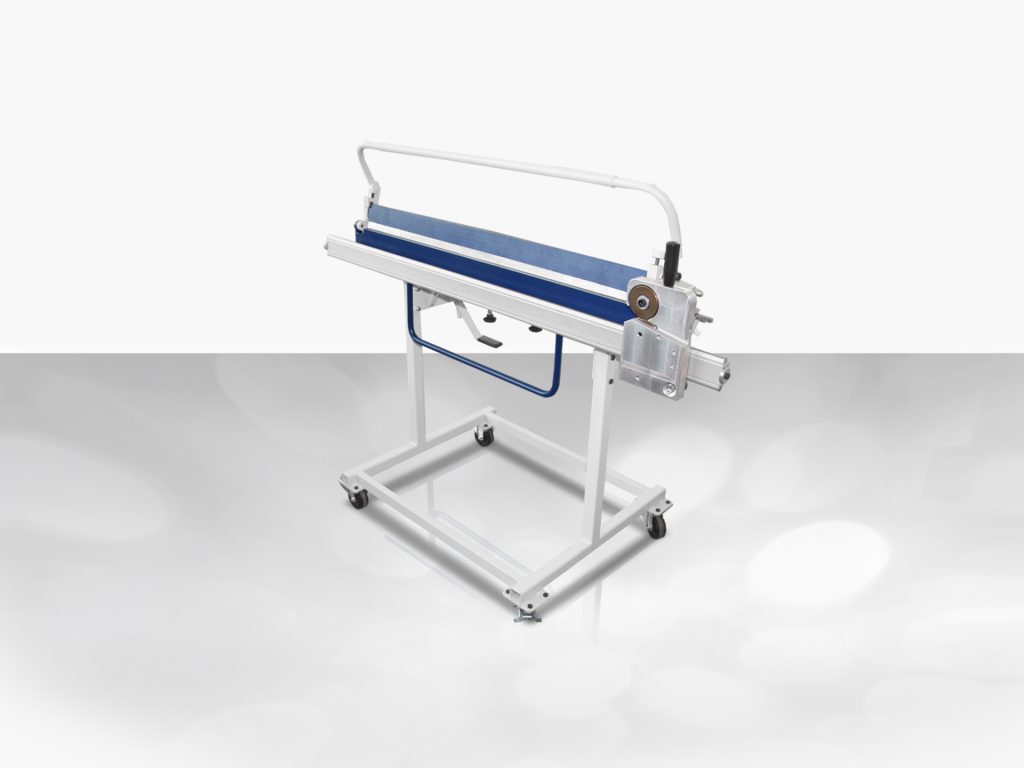

BAM 1000

  • Quick rotating clamping beam with sharp blade
    and goat’s foot blade for narrow bendings
  • Folding blade 15 mm
  • Easy to disassemble and transport
  • Quick clamping beam
  • Sheet support and back gauge system 500 mm
  • Cutting device incl. guide rail for max. sheet thickness 0,8 mm St37
  • Stand with 4 castors:
    2 fixed and 2 steering castors, lockable
  • Angle indicator

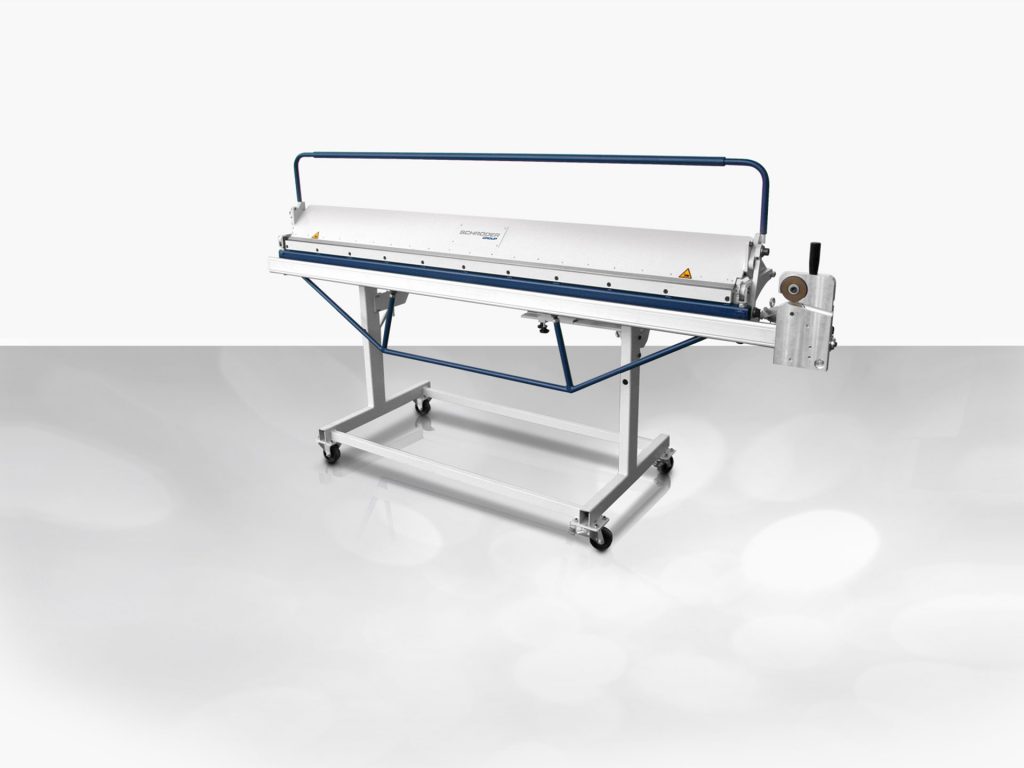

BAM 2000

  • Sharp-nose blade 20°, exchangeable
  • Folding blade 15 mm, exchangeable
  • Folding beam with crowning device
  • Folding beam adjustable in linear and vertical direction
  • Clamping beam with counterbalance adjustment
  • Quick clamping beam with one-hand operation
  • Sheet support and back gauge system 750 mm
  • Cutting device incl. guide rail for max. sheet thickness 0,8 mm St37
  • Removeable stand with 4 castors:
    2 fixed and 2 steering castors, lockable
  • Angle indicator

Brochures:
deutsch
english

Technical Data

type capacity working length clamping beam stroke
[mm] [mm] [mm]
1000×0,8 0,8 1020 45
2000×0,75 0,75 2020 65

Brochures:
deutsch
english

Werkzeuge/Optionen

Options

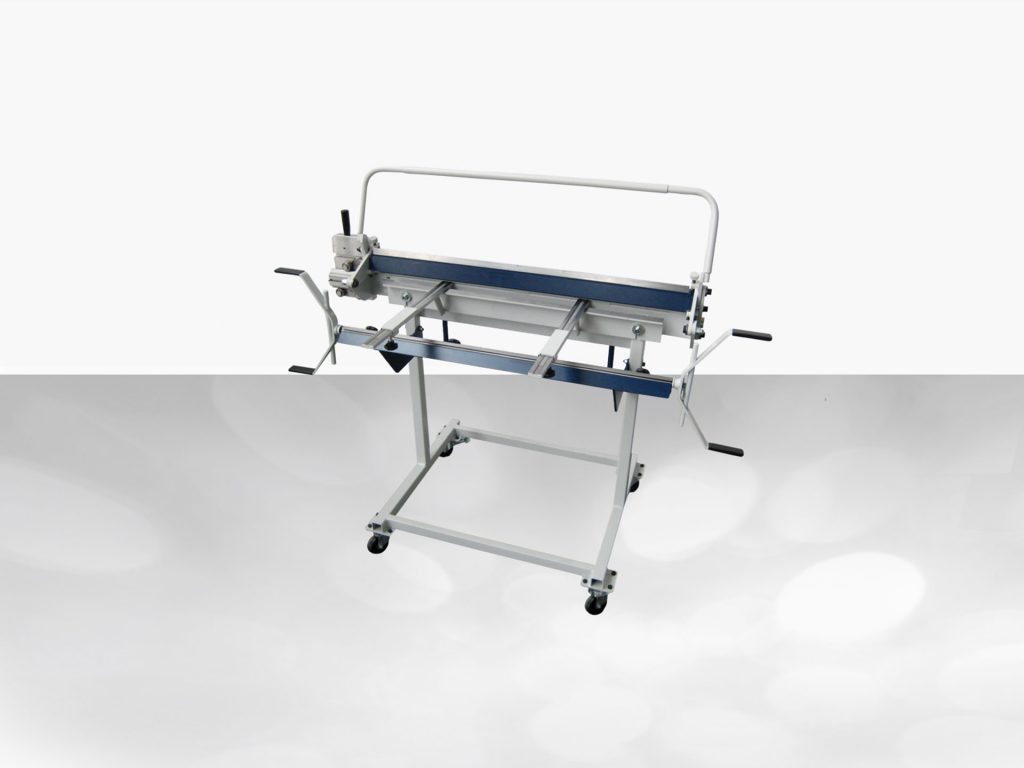

  • Adjustable beading device without beading and twist clamp
  • Beading rod 12 mm, 14 mm or 16 mm incl. one set of twist clamp
