ASK 3

Overview

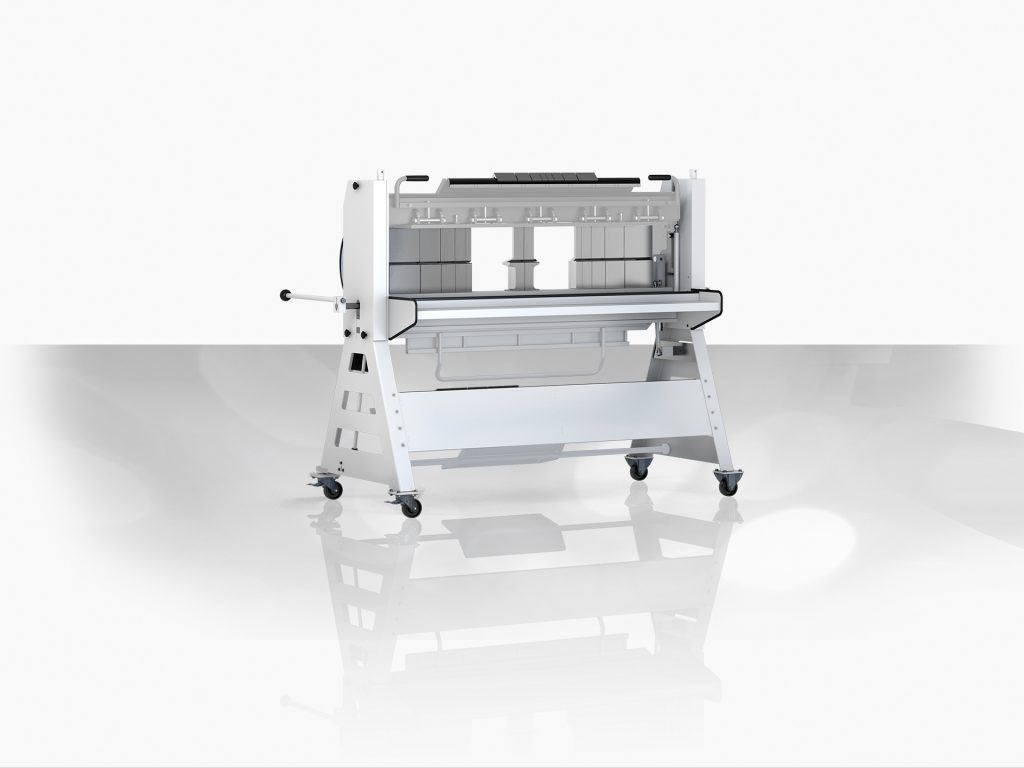

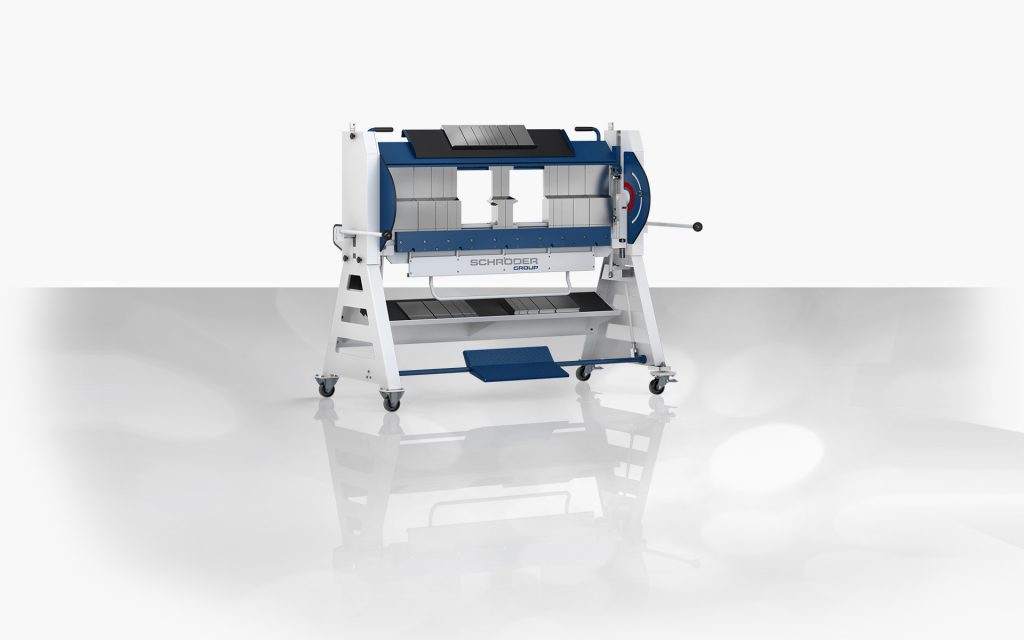

The segment folding machine type ASK 3 ist the new manual folding machine of the 3rd generation. It is the versatile solution for sheet metal processing in workshops and on the construction site. Alongside the standard equipment such as the patented quick clamping device with eccentric this new version of the ASK has optionally a muti-stage clamping-beam drive for four different tool heights or rather up to 180 mm free space at the clamping beam, up to 120 mm at the the bottom beam and up to 142 mm at the folding beam. The clearances for tools expand the product range tremendously and increase flexibility.

Brochures:
deutsch
english

Details

  • Patented quick clamping device with eccentric for quick changing of clamping and folding beam tools
  • Mulit-stage clamping beam drive for four different tool heights
  • Goat’s foot blade, H = 130 mm, 30°, sharp, clearance 26 mm, foot width 40 mm, free space 110 mm, segmented incl. corner parts, material strength 700 N/mm²
  • Bottom beam blade, free space 55 mm, segmented incl. corner parts
  • Combi-folding blade, H = 120 mm, 12/15 mm, free space 77 mm, segmented incl. corner parts
  • Segmentation of tools for 1,000 mm: 30/50/70/100/150/200/300 mm + 2 x 75 mm corner parts;
    with 1250 mm length plus 250 mm segments, with 1500 mm length plus 2 x 250 mm segments
  • Angle indicator
  • Angle gauge
  • Stacking table for tools
  • Foot pedal for opening and closing of clamping beam
  • Machine with 4 castors: 2 fixed and 2 steering castors, lockable

Brochures:
deutsch
english

Technical Data

type capacity working length L x W x H weight
[mm] [mm] [mm] [kg]
1000×1,5 1,50 1050 1 540 x 750 x 1 265 310
1000×1,5 1,50 1300 2 040 x 750 x 1 265 350
1000×1,5 1,50 2550 2 540 x 750 x 1 265 390

Brochures:
deutsch
english

Werkzeuge/Optionen

Options

  • 2 variable gauge arms 600 mm with scale, movable on linear guide incl. 2 tipping gauges
  • Cutting device incl. linear guide (only for standard folding beam heights)
  • Tool set to form window sills

Clamping beam tools: standard version 700 N/mm²

  • Goat’s foot blade 170 mm high, 30°, sharp, clearance 26 mm, foot width 41 mm, free space 150 mm, segmented incl. corner parts
  • Goat’s foot blade 200 mm high, 30°, sharp, clearance 26 mm, foot width 41 mm, free space 180 mm, segmented incl. corner parts
  • Sharp nose blade 20° and 30°
  • Radius blade R 2/3/4/5

Clamping beam tools: surface-hardened 1100 N/mm²

  • Goat’s foot blade 130 mm high, 30°, R 1/2/3/4, clearance 30 mm, foot width 501 mm, free space 110 mm, segmented incl. corner parts
  • Goat’s foot blade 170 mm high, 30°, R 1/2/3/4, clearance 30 mm, foot width 50 mm, free space 150 mm, segmented incl. corner parts
  • Goat’s foot blade 200 mm high, 30°, R 1/2/3/4, clearance 30 mm, foot width 50 mm, free space 180 mm, segmented incl. corner parts
